Promotion! Dolphin Pro2 Center Console
Regular price $1,719.00SPECIFICATIONS
Brand Name: Reborn
Origin: Mainland China
Hign-concerned Chemical: None
Brand: Dolphin
Type: Dolphin Pro2 Boat t top & Fishing Rod Rocket Launcher
Material: Aluminium
Canopy color: Black
Dimensions: Fit up to 48 inch wide consoles
Warm Tips For EU customers:
The price you see now includes the VAT tariff, that’s why the displayed price is much higher, but you do not need to pay additional VAT when you check out over 150 euros.
We actually dispatch your package from Germany warehouse and delivery time is about 3-7 days by DPD, GLS or DHL. It will be much appreciated if you leave us a valid contact number.
Our Advantages:
☆☆☆☆☆【 Shipment 】For the following countries, the tax or duty is paid by sellers:
France, Spain, Netherlands, Italy, Bulgaria, Belgium, Latvia, Poland, Denmark, Finland, Portugal, Sweden, Slovakia, Slovenia, Greece, Hungary, Czech Republic, Lithuania, Luxembourg, Romania, Ireland, Estonia, Croatia, America, Australia.
☆☆☆☆☆【Overseas Warehouse】We have Overseas Warehouses in America, Sydney & Germany. We will ship the package from the nearest warehouse according to theaddress.

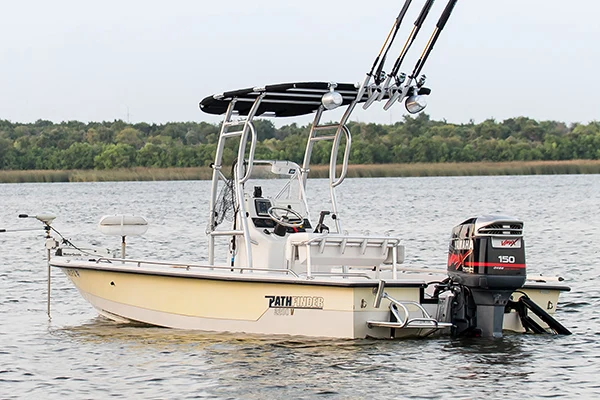

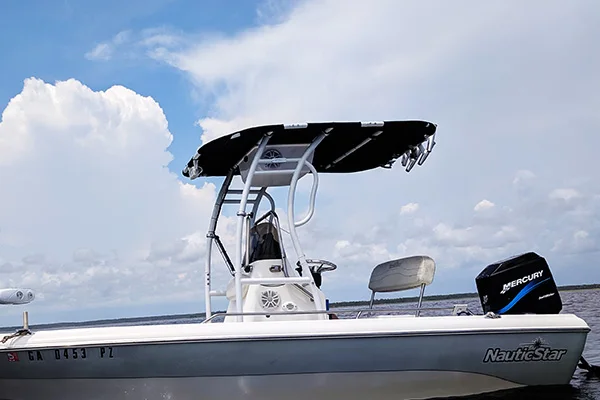

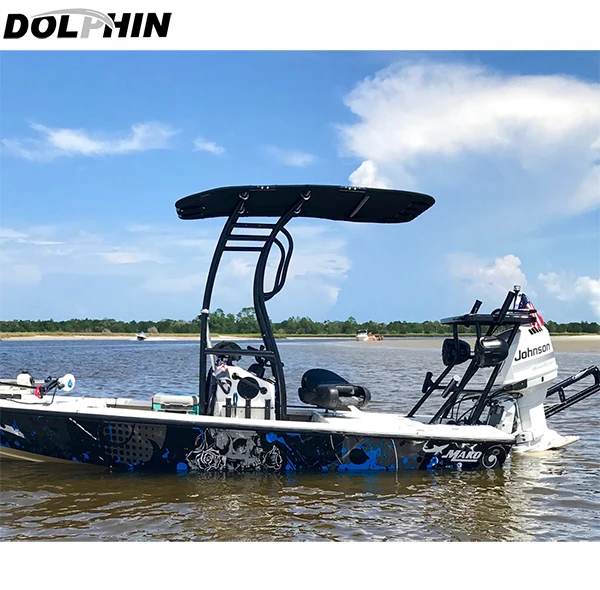

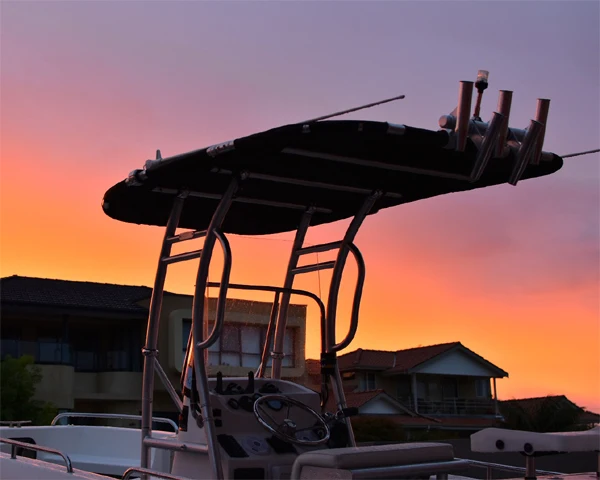

Dolphin Pro2 Boat T Top plus a 5 Fishing Rod Holder Package
The Pro 2 T Top is designed for the mid to large size boat.
Center Console Alloy or fibreglass 18ft to 25ft
Attaches direct to your floor.
4 x standoffs lock into console.
Removable cover,zipper and velcro.
2 inch heavy duty frame
Large grab handle
Quick release for storage.

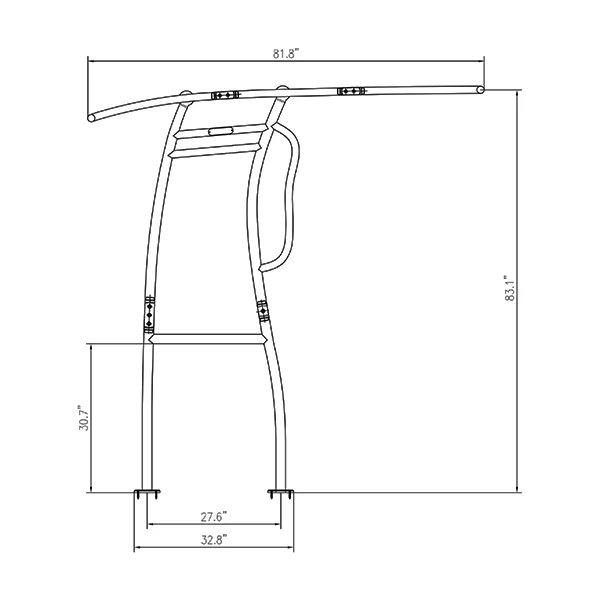

Dimensions
83 inches high
Up to 48 inch wide consoles (If you have a wider console, please order Pro3+ )
82 inches long x 61 inches wide Cover
28 inches front to rear feet center to center.

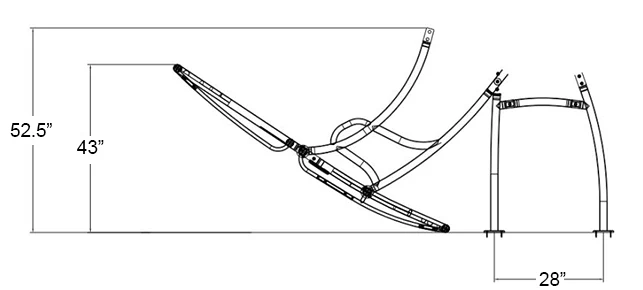

Lowering the T Top
Front leg loosen the middle bolt.
Remove the top and bottom bolt from the joint
Remove the bolt from the rear leg.
Pivot the T Top forwards.
If needed you can remove bolt from top frame joint
See picture in gallery
Materials
2 inch heavy duty anodised 6063 alloy frame.
CNC Machined 6061 Alloy fitting.
Marine grade VIII, UV resist cover.
Finish
Anodised
Black color Material

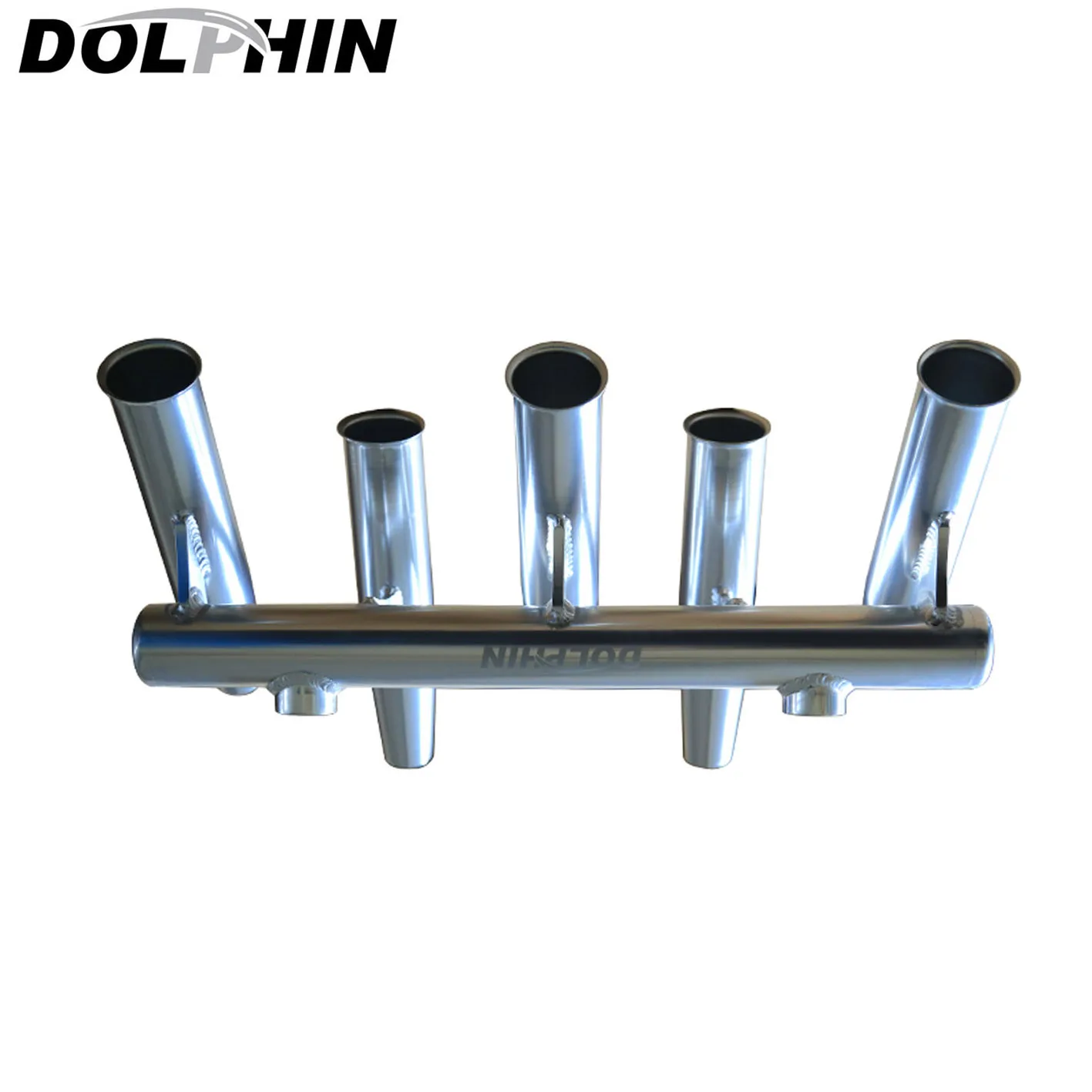

Dolphin 5 Rod Rocket Launcher, anodized
Heavy duty quality construction, rubber inserts to protect.
Clear anodised finish Easy to keep clean, NO polishing.

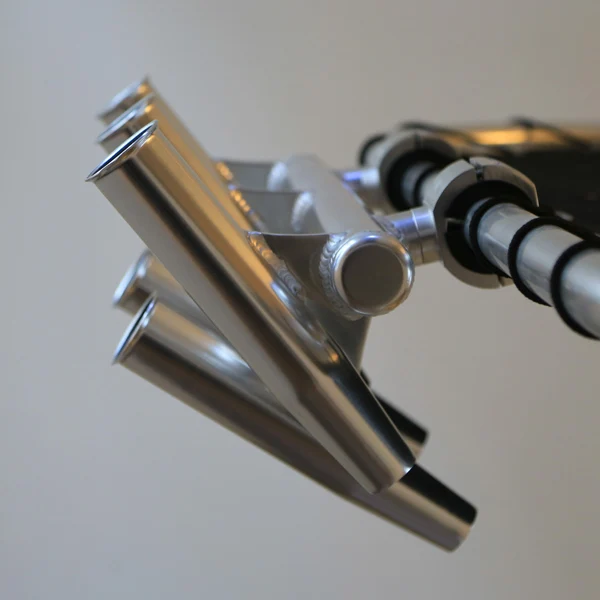

5 rod holders to clamp to your T-Top, hardtop, tower, radar arch, rail or any structure made from 2 inch, 1.5inch pipe.
Materials.
Cnc machined from solid 6061 aircraft aluminium.
Cold-drawn tubing anodized for superior protection.
316 stainless hardware.
Quality raw materials for pure performance.
Size.
2 inch & 1.5 inch inserts
12 1/4 inches center to center clamps
Great 5 x fishing rod holder for your boat t top.

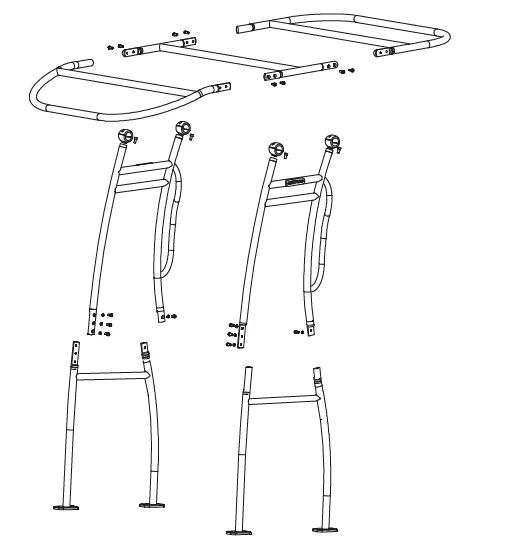

EXPLODED VIEW OF THE DOLPHIN PRO/PRO2 T TOP FOR REFERENCE
CARE AND MAINTENANCE
Be sure to check and tighten all fasteners and connections prior to
every use. Be cautious when towing or driving under obstacles, low
hanging structures or trees
Leave dolphin t top in the erect position when towing behind a vehicle
Use soap and water to clean your tower. Avoid abrasive material that
might scratch or damage
the tower protective fnish.
Always rinse and wipe down tower after contact with salt (brackish)
water.
WARRANTY
Dolphin T Tops warrants the product (not including other 3rd party accessories) against
manufactures defects.
To claim you must contact Dolphin T Tops or his Distributor. The product/part is to be sent to the
Distributor for inspection where it will either be repaired or replaced. (unless otherwise agreed in writing)
The customer is liable for costs associated in shipping the product/part to Dolphin T Tops.
Dolphin is not responsible for personal injury or damage to the boat caused by the use of the t top
or any transport charges or cost of installation or removal of the t top. Dolphin is not liability for direct
or indirect or consequential damages resulting from delay or improper installation.
CANOPY IS RATED FOR UP TO 45 MPH. Please remove canopy when driving above rated speed.
Warranty does not cover Anodised, polished or powder coated surfaces as well as any hardware
corrosion they are speci!cally excluded as their care and use can not be controlled by Dolphin.
Warranty does not cover the spider coat gel cracking or damage from the installation or use of
the t top on your boat. No dealer, retailer or manufacturer is the agent and may
not assume any liability in connection with this warranty. This warranty is in lieu of all.
WARNING
The construction of your boat, design, thickness of flooring deck and walls and overall design may
cause movement at the mounting points.
If the construction of you boat causes movement at the mounting points or incorrect mounting location
creates added pressure on joints increasing movement of the t top it voids warranty.
If in doubt do not install the t top
Check all bolts and parts prior to use, especially after towing behind a vehicle, lowering and raising
after storage.
WARNING
Do not stand, climb or jump o# tower, do not tow the boat behind a vehicle with the t top lowered.
Do Not Ski, wake,tow tubes, boats or other watercraft from the tower. Watch out whilst moving under
objects, such as bridges, low building and trees.
